Supply 0.75hp pheripheral water pumps KF2 manufacturer from China FUJIAN BAILONG ELECTRIC CO.,LTD

Price:	1.0~300.5 USD
Payment Terms:	T/T,L/C
Place of Origin:	Fujian, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KF2

Production Capacity: 10,000pcs

Delivery Date: Within 25days after order c...

Rated power: 0.75hp

H.max: 55m

Dimension: 330*185*205mm

Motor housing: Alloy aluminum

Means of Transport: Ocean

Packing: strong hard carton

Brand Name: BAILONG

Q.max: 50L/min

pipe Dia: 1"*1"

N.W: 9.7kg

Warranty: 1 year

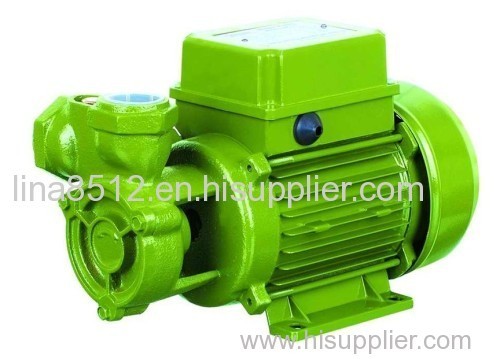

0.75hp pheripheral water pumps
1.Facort price,good quality
2.Pump body:Cast iron
3.Quick delivery time

0.75hp pheripheral water pumps

KF series electric water pumps have peripheral type impeller. On the extremities of the impeller, there are several radial paddles which give more energy to the pumped liquid. The special shaping of the paddles gives the fluid a fast radial recycling motion between the paddles of the impeller and the pump body. This characteristic enable the pump obtaining a regular and not pulsating flow and high pressures with quite slopping curves. APPLICATION General water supply, pressurized water using pressure vessels (autoclaves), agricultural irrigation, boosting showers, daily and farm application. To empty and fill cisterns, garden watering application also a variety of Original Equipment Manufactures. PUMP Peripheral Pump Body: Cast Iron Impeller: Brass Pump Cover: Cast Iron / Brass Mechanical Seal: Carbon / Ceramic / Stainless steel MOTOR Single Phase Heavy Duty Continuous Work Motor Housing: Aluminium Shaft: Carbon Steel / Stainless Steel Insulation: Class B / Class F Protection: IP44 / IP54 Cooling: External ventilation
Specifications

KF series electric water pumps have peripheral type impeller. On the extremities of the impeller, there are several radial paddles which give more energy to the pumped liquid. The special shaping of the paddles gives the fluid a fast radial recycling motion between the paddles of the impeller and the pump body.
This characteristic enable the pump obtaining a regular and not pulsating flow and high pressures with quite slopping curves.

APPLICATION
General water supply, pressurized water using pressure vessels (autoclaves), agricultural irrigation, boosting showers, daily and farm application.
To empty and fill cisterns, garden watering application also a variety of Original Equipment Manufactures.

PUMP Peripheral
Pump Body: Cast Iron
Impeller: Brass
Pump Cover: Cast Iron / Brass
Mechanical Seal: Carbon / Ceramic / Stainless steel

MOTOR Single Phase Heavy Duty Continuous Work
Motor Housing: Aluminium
Shaft: Carbon Steel / Stainless Steel
Insulation: Class B / Class F
Protection: IP44 / IP54
Cooling: External ventilation

Specifications

Model	Power		Ampere 1~220	R.P.M	Q.Max (l/min)	H.Max (m)	S.Head (M)	Pipe Dia	L X W X H (mm)	N.W (kg)
Model	HP	kW	Ampere 1~220	R.P.M	Q.Max (l/min)	H.Max (m)	S.Head (M)	Pipe Dia	L X W X H (mm)	N.W (kg)
KF0	0.5	0.37	1.6	2850	35	35	9	1"x1"	295X170X180	5.9
KF1	0.5	0.37	1.6	2850	35	35	9	1"x1"	295X170X180	5.9
KF2	0.75	0.55	3.6	2850	40	40	9	1"x1"	330X185X205	9.7
KF3	1	0.75	4.8	2850	50	50	9	1"x1"	330X185X205	10
